Chrome Plated Bar

Chrome Plated Bar

As a professional chrome plated bar manufacturer and supplier, Anbao Hydraulic has been supplying and exporting hydraulic cylinder chrome bar and hydraulic piston rod from China for almost 23 years, Any inquiries and problems please feel free to send emails to us via, we will reply you within 1 working day.

Material: CK45, SAE1045, 4140, 4130,4340, SAE1518,SAE4145,JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.
Diameter:Φ 6-500mm
Length:max 20 meters
Salt Spray Test: Passed As Per Request

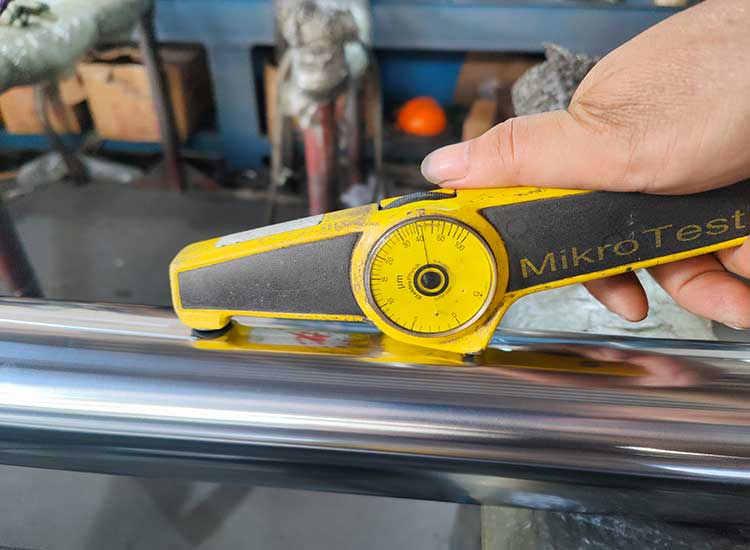

Chrome layer: min 20/25/30/50 Micron or customized
Hardness of the chrome layer:850 HV (min) – 1150 HV
Roughness:Ra <= 0.4
Straightness:<= 0.5/1000
Diameter tolerance: ISO f7/f8/f9/h8/h9 or as request
Roundness:Half of the tolerance ISO f7

Heat treatment Type:1) Normal no heat  2)Q+T(Quenched+Tempered) 3)Induction Hardened

Hard chrome bar/ Hard chrome rod/Induction hardened chrome bar/hydraulic cylinder shaft/hydraulic cylinder rod

chrome plated bar manufacturer and supplier

Delivery condition:
Hard Chrome Piston Rod
Quenched & Tempered (Q+T) Rod
Induction Hardened Rod
Q+T Induction Hardened Rod

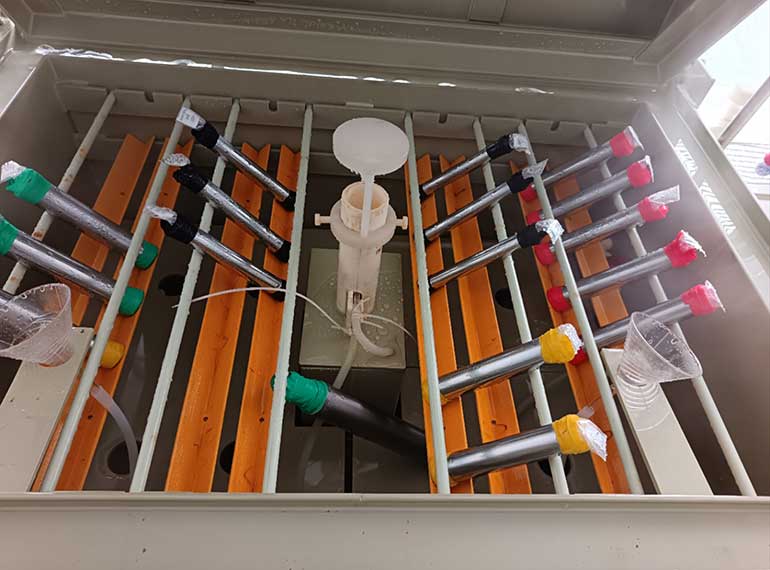

Corrosion resistance:
Test in natural salt spray according to ASTM B 117-96 hours.

chrome plated rod manufacturer
chrome plated rods
Anbao Honed Tubes and Chrome Rod
chrome plated bar supplier
cylinder piston rod
Anbao Hard chrome bar
chrome plated bar chemical composition
chrome rod

Feature Of Our Chrome Plated Bar/chrome rod/chrome shaft

  1. Precision material parts strictly according to customer&request drawing,packing and quality request
    2.Tolerance: can be kept in +/-0.01mm
    3.The most advanced inspector to ensure the quality
    4.Experienced technology engineers and well trained workers
    5.Fast and timely delivery. Speedily &professional service
    6.Give customer professional suggestion while in the process of customer designing to save costs

Our main business range is listed as follows:

Carbon Seamless Steel pipe/tube

Hydraulic cylinder tube(Honed tube)

Hard chrome plated rod/bar/shaft(hydraulic piston rod)

Hydraulic cylinder

Chrome plated bars/chrome plated rods&shafting

Hollow chrome bars

4140 chrome plated bars&rods

1045 hard chrome bars

We are able to offer best hard chrome rods and chrome bars for our customers. If you are interested in our chrome plated bars, hard chrome rod, induction hardened chrome bars.

Want to purchase Our chrome plated rods ?

Please contact us through below methods for more information.

Tel & WhatsApp & Wechat  : +8613681801718
